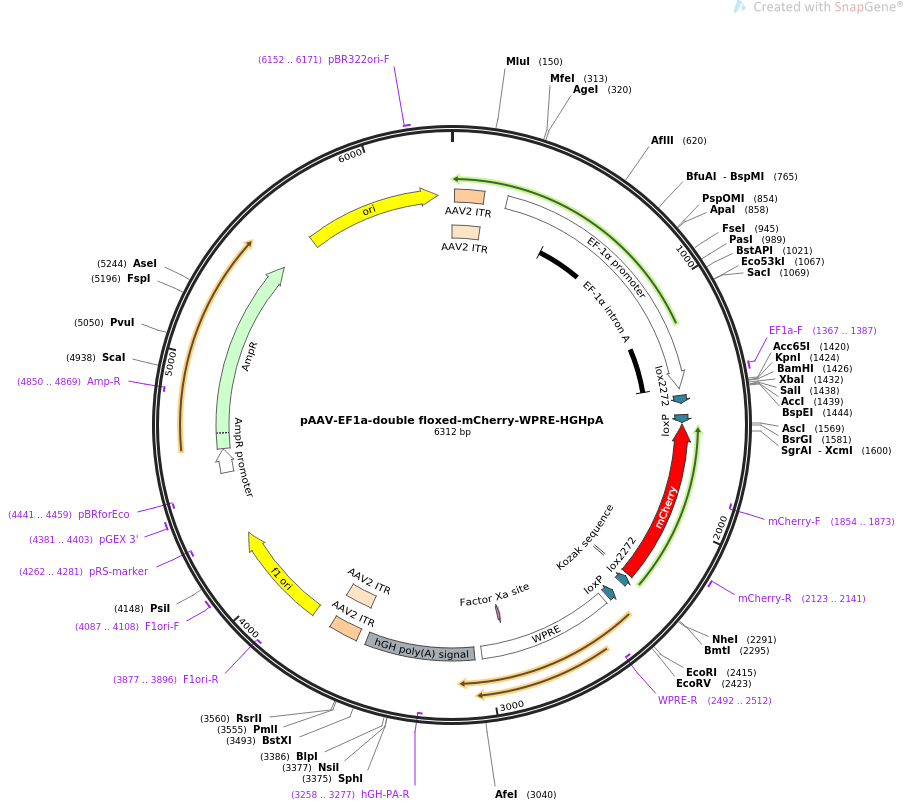

pAAV-EF1a-double floxed-mCherry-WPRE-HGHpA

LOCUS       pAAV-EF1a-double floxed-mCherry-WPRE-HGHpA                6312 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  Cre-activated AAV expression of mCherry.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-EF1a-double floxed-mCherry-WPRE-HGHpA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6312)
  TITLE     Cre-activated AAV expression plasmids
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pAAV-EF1a-double floxed-mCherry-WPRE-HGHpA|
FEATURES             Location/Qualifiers
     source          1..6312
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     repeat_region   1..141
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   12..141
                     /label=AAV2 ITR
     promoter        242..1419
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     intron          473..1410
                     /label=EF-1-alpha intron A
                     /note="intron upstream of the start codon of human
                     EF-1-alpha"
     primer_bind     1367..1387
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     protein_bind    1450..1483
                     /label=lox2272
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GGATACTT). lox2272 sites are compatible with each
                     other, but incompatible with loxP or loxN sites."
     protein_bind    1534..1567
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     CDS             complement(1576..2286)
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1854..1873)
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     2123..2141
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     regulatory      2283..2292
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     protein_bind    complement(2297..2330)
                     /label=lox2272
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GGATACTT). lox2272 sites are compatible with each
                     other, but incompatible with loxP or loxN sites."
     protein_bind    complement(2381..2414)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    2439..3027
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2492..2512)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(2910..2921)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3059..3535
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(3258..3277)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   3575..3715
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   3575..3704
                     /label=AAV2 ITR
     rep_origin      3790..4245
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3877..3896)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4087..4108
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(4262..4281)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4381..4403
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4441..4459)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4527..4631
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4632..5492
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(4850..4869)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      5663..6251
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6152..6171
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag cccgggcgtc
       61 gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag ggagtggcca
      121 actccatcac taggggttcc tgcggccgca cgcgtaagct ttgcaaagat ggataaagtt
      181 ttaaacagag aggaatcttt gcagctaatg gaccttctag gtcttgaaag gagtgggaat
      241 tggctccggt gcccgtcagt gggcagagcg cacatcgccc acagtccccg agaagttggg
      301 gggaggggtc ggcaattgaa ccggtgccta gagaaggtgg cgcggggtaa actgggaaag
      361 tgatgtcgtg tactggctcc gcctttttcc cgagggtggg ggagaaccgt atataagtgc
      421 agtagtcgcc gtgaacgttc tttttcgcaa cgggtttgcc gccagaacac aggtaagtgc
      481 cgtgtgtggt tcccgcgggc ctggcctctt tacgggttat ggcccttgcg tgccttgaat
      541 tacttccact ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
      601 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
      661 cctgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
      721 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
      781 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
      841 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
      901 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
      961 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     1021 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     1081 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     1141 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     1201 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     1261 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     1321 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     1381 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gtaccggatc ctctagagtc
     1441 gactccggaa taacttcgta taggatactt tatacgaagt tatgcagaat ggtagctgga
     1501 ttgtagctgc tattagcaat atgaaacctc ttaataactt cgtatagcat acattatacg
     1561 aagttatggc gcgccttact tgtacagctc gtccatgccg ccggtggagt ggcggccctc
     1621 ggcgcgttcg tactgttcca cgatggtgta gtcctcgttg tgggaggtga tgtccaactt
     1681 gatgttgacg ttgtaggcgc cgggcagctg cacgggcttc ttggccttgt aggtggtctt
     1741 gacctcagcg tcgtagtggc cgccgtcctt cagcttcagc ctctgcttga tctcgccctt
     1801 cagggcgccg tcctcggggt acatccgctc ggaggaggcc tcccagccca tggtcttctt
     1861 ctgcattacg gggccgtcgg aggggaagtt ggtgccgcgc agcttcacct tgtagatgaa
     1921 ctcgccgtcc tgcagggagg agtcctgggt cacggtcacc acgccgccgt cctcgaagtt
     1981 catcacgcgc tcccacttga agccctcggg gaaggacagc ttcaagtagt cggggatgtc
     2041 ggcggggtgc ttcacgtagg ccttggagcc gtacatgaac tgaggggaca ggatgtccca
     2101 ggcgaagggc agggggccac ccttggtcac cttcagcttg gcggtctggg tgccctcgta
     2161 ggggcggccc tcgccctcgc cctcgatctc gaactcgtgg ccgttcacgg agccctccat
     2221 gtgcaccttg aagcgcatga actccttgat gatggccatg ttatcctcct cgcccttgct
     2281 caccatggtg gctagcataa cttcgtataa agtatcctat acgaagttat ttgccttaac
     2341 ccagaaatta tcactgttat tctttagaat ggtgcaaaga ataacttcgt ataatgtatg
     2401 ctatacgaag ttatgaattc gatatcaagc ttatcgataa tcaacctctg gattacaaaa
     2461 tttgtgaaag attgactggt attcttaact atgttgctcc ttttacgcta tgtggatacg
     2521 ctgctttaat gcctttgtat catgctattg cttcccgtat ggctttcatt ttctcctcct
     2581 tgtataaatc ctggttgctg tctctttatg aggagttgtg gcccgttgtc aggcaacgtg
     2641 gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg ttggggcatt gccaccacct
     2701 gtcagctcct ttccgggact ttcgctttcc ccctccctat tgccacggcg gaactcatcg
     2761 ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt gggcactgac aattccgtgg
     2821 tgttgtcggg gaaatcatcg tcctttcctt ggctgctcgc ctatgttgcc acctggattc
     2881 tgcgcgggac gtccttctgc tacgtccctt cggccctcaa tccagcggac cttccttccc
     2941 gcggcctgct gccggctctg cggcctcttc cgcgtcttcg ccttcgccct cagacgagtc
     3001 ggatctccct ttgggccgcc tccccgcatc gataccgagc gctgctcgag agatctacgg
     3061 gtggcatccc tgtgacccct ccccagtgcc tctcctggcc ctggaagttg ccactccagt
     3121 gcccaccagc cttgtcctaa taaaattaag ttgcatcatt ttgtctgact aggtgtcctt
     3181 ctataatatt atggggtgga ggggggtggt atggagcaag gggcaagttg ggaagacaac
     3241 ctgtagggcc tgcggggtct attgggaacc aagctggagt gcagtggcac aatcttggct
     3301 cactgcaatc tccgcctcct gggttcaagc gattctcctg cctcagcctc ccgagttgtt
     3361 gggattccag gcatgcatga ccaggctcag ctaatttttg tttttttggt agagacgggg
     3421 tttcaccata ttggccaggc tggtctccaa ctcctaatct caggtgatct acccaccttg
     3481 gcctcccaaa ttgctgggat tacaggcgtg aaccactgct cccttccctg tccttctgat
     3541 tttgtaggta accacgtgcg gaccgagcgg ccgcaggaac ccctagtgat ggagttggcc
     3601 actccctctc tgcgcgctcg ctcgctcact gaggccgggc gaccaaaggt cgcccgacgc
     3661 ccgggctttg cccgggcggc ctcagtgagc gagcgagcgc gcagctgcct gcaggggcgc
     3721 ctgatgcggt attttctcct tacgcatctg tgcggtattt cacaccgcat acgtcaaagc
     3781 aaccatagta cgcgccctgt agcggcgcat taagcgcggc gggtgtggtg gttacgcgca
     3841 gcgtgaccgc tacacttgcc agcgccctag cgcccgctcc tttcgctttc ttcccttcct
     3901 ttctcgccac gttcgccggc tttccccgtc aagctctaaa tcgggggctc cctttagggt
     3961 tccgatttag tgctttacgg cacctcgacc ccaaaaaact tgatttgggt gatggttcac
     4021 gtagtgggcc atcgccctga tagacggttt ttcgcccttt gacgttggag tccacgttct
     4081 ttaatagtgg actcttgttc caaactggaa caacactcaa ccctatctcg ggctattctt
     4141 ttgatttata agggattttg ccgatttcgg cctattggtt aaaaaatgag ctgatttaac
     4201 aaaaatttaa cgcgaatttt aacaaaatat taacgtttac aattttatgg tgcactctca
     4261 gtacaatctg ctctgatgcc gcatagttaa gccagccccg acacccgcca acacccgctg
     4321 acgcgccctg acgggcttgt ctgctcccgg catccgctta cagacaagct gtgaccgtct
     4381 ccgggagctg catgtgtcag aggttttcac cgtcatcacc gaaacgcgcg agacgaaagg
     4441 gcctcgtgat acgcctattt ttataggtta atgtcatgat aataatggtt tcttagacgt
     4501 caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac
     4561 attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa
     4621 aaaggaagag tatgagtatt caacatttcc gtgtcgccct tattcccttt tttgcggcat
     4681 tttgccttcc tgtttttgct cacccagaaa cgctggtgaa agtaaaagat gctgaagatc
     4741 agttgggtgc acgagtgggt tacatcgaac tggatctcaa cagcggtaag atccttgaga
     4801 gttttcgccc cgaagaacgt tttccaatga tgagcacttt taaagttctg ctatgtggcg
     4861 cggtattatc ccgtattgac gccgggcaag agcaactcgg tcgccgcata cactattctc
     4921 agaatgactt ggttgagtac tcaccagtca cagaaaagca tcttacggat ggcatgacag
     4981 taagagaatt atgcagtgct gccataacca tgagtgataa cactgcggcc aacttacttc
     5041 tgacaacgat cggaggaccg aaggagctaa ccgctttttt gcacaacatg ggggatcatg
     5101 taactcgcct tgatcgttgg gaaccggagc tgaatgaagc cataccaaac gacgagcgtg
     5161 acaccacgat gcctgtagca atggcaacaa cgttgcgcaa actattaact ggcgaactac
     5221 ttactctagc ttcccggcaa caattaatag actggatgga ggcggataaa gttgcaggac
     5281 cacttctgcg ctcggccctt ccggctggct ggtttattgc tgataaatct ggagccggtg
     5341 agcgtgggtc tcgcggtatc attgcagcac tggggccaga tggtaagccc tcccgtatcg
     5401 tagttatcta cacgacgggg agtcaggcaa ctatggatga acgaaataga cagatcgctg
     5461 agataggtgc ctcactgatt aagcattggt aactgtcaga ccaagtttac tcatatatac
     5521 tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag atcctttttg
     5581 ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg tcagaccccg
     5641 tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc
     5701 aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc
     5761 tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtc cttctagtgt
     5821 agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac ctcgctctgc
     5881 taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc gggttggact
     5941 caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac
     6001 agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt gagctatgag
     6061 aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc ggcagggtcg
     6121 gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt tatagtcctg
     6181 tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca ggggggcgga
     6241 gcctatggaa aaacgccagc aacgcggcct ttttacggtt cctggccttt tgctggcctt
     6301 ttgctcacat gt
//
